24-rdzeniowy kabel światłowodowy GYTS
Osoba kontaktowa : JQ CABLE
Numer telefonu : +8618122383351
WhatsApp : +8618122383351
| Minimalne zamówienie : | 10 km | Szczegóły pakowania : | Drewniany bęben |
|---|---|---|---|
| Czas dostawy : | 8 dni | Zasady płatności : | L/C, T/T, Western Union |
| Możliwość Supply : | 300KM dziennie |
| Miejsce pochodzenia: | CHINY | Nazwa handlowa: | JQ/ Customized |
|---|---|---|---|
| Orzecznictwo: | ISO9001, FCC, ROHS/CCC/FCC | Numer modelu: | GYFTY-24F |
|
Szczegóły informacji |
|||
| Marka światłowodowa: | YOFC/FiberHome/ Corning | Kolor: | Czarny lub pomarańczowy lub dostosowany |
|---|---|---|---|
| Kurtka metaryczna: | PE,HDPE/LSZH | Członek siły: | FRP (w razie potrzeby z PE) |
| Liczba błonnika: | 4-288 rdzeni | Instalacja: | napowietrzne i kanałowe |
| Długość bębna: | 5 km lub dostosowane | Nazwa produktu: | Zewnętrzny kabel światłowodowy GYFTY |
| Podkreślić: | 12 core duct fiber optic cable,48 core underground fiber optic cable,self supporting outdoor fiber cable |
||
opis produktu
Strong mechanical performance and excellent temperature resistance
Water-blocking, high-strength loose tube to protect fibers
Optical fibers filled with special gel for added protection
PE outer sheath with UV resistance and anti-compression properties
Lightweight, small diameter, easy for installation and overhead/duct/direct burial use
Non-metallic design, safe for lightning-prone or high-voltage areas
Single Mode: OS2 9/125 G652D / G657A1 / G657A2
Multimode: OM1 62.5/125, OM2 50/125, OM3 10G, OM4 10G (other types available on request)
Power transmission lines and utility poles
Lightning-intensive areas
Outdoor backbone network / FTTH projects
Duct, aerial, or direct burial installations
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 8.8 | 88 |
10
|
20
|
1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 | ||
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 | ||
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 | ||
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 | ||
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 | ||
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 | ||
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 | ||
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 | ||
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 | ||
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788
Detail product pictures
![]()
![]()

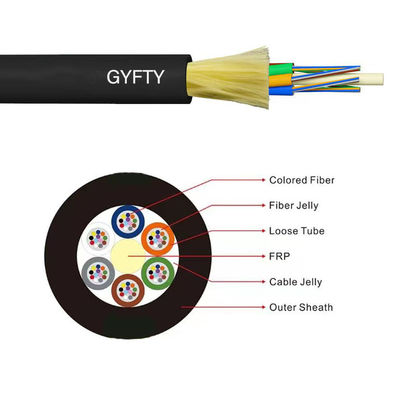

Picture shows about the GYFTY-48 C
Q1: Are you a factory?
Yes. We are a direct manufacturer of fiber optic cables, MPO breakout cables, and patch cords, with exports to Europe, South America, and other regions.
Q2: What are your main products?
Outdoor/indoor fiber optic cables, FTTH drop cables, ADSS cables, armored indoor patch cords, and SC/LC/FC/ST/MTP/MPO optical patch cords.
Q3: What is the warranty for your products?
We provide a 20-year warranty for our fiber optic cables.
Q4: Do you have certifications for raw materials?
Yes. All raw materials are sourced from ISO9001 and ROHS-certified suppliers.
