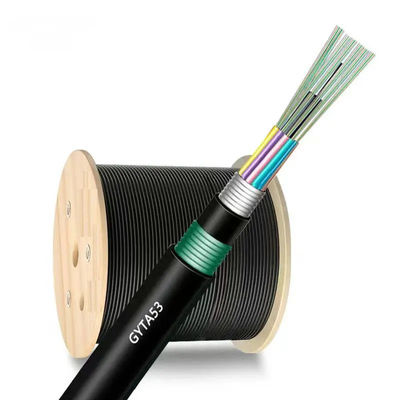

Double Sheath Steel Tape Armored Fiber Optic Cable GYTA53 / Aluminum Armored Direct Buried Cable

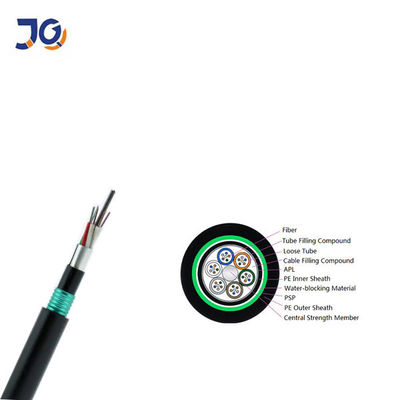

The 250µm fibers are housed in PBT loose tubes filled with water-blocking gel. A central steel strength member supports the core, with tubes and fillers stranded around it for a compact structure. The core is wrapped with APL for moisture protection, followed by a PE inner sheath. PSP armor is applied longitudinally, and the cable is finished with a durable PE outer sheath for direct-burial environments.
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Application
Suitable for directly buired laying method
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
GYTA53( Aluminium polyethylene laminate)
|
Fiber
Count
|
Nominal
Diameter
(mm)
|
Nominal
Weight
(kg/km)
|
Allowable Tensile Load
(N)
|
Allowable Crush Resistance
(N/100mm)
|
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|
2~30
|
13.2
|
162
|
3000
|
1000
|
3000
|
1000
|
|
32~48
|
13.8
|
175
|
3000
|
1000
|
3000
|
1000
|
|
50~72
|
14.6
|
205
|
3000
|
1000
|
3000
|
1000
|
|
74~96
|
16.0
|
230
|
3000
|
1000
|
3000
|
1000
|
|
98~144
|
17.6
|
285
|
3000
|
1000
|
3000
|
1000
|
|
＞144
|
Avaliable upon customer's request
|
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information
Packing
1/2/3/4km or customized length export wooden drum
FAQ
1. Are you a trading company or manufacturer?
We are a manufacturer with 10+ years of experience, specializing in the R&D and production of fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou—welcome to visit.
2. How is the quality ensured?
All fibers are fully tested before delivery. After price confirmation, free samples are available for quality checking.
3. Do you accept small orders?
Yes. Small orders are welcome, and we support customers’ new projects.
4. What is the delivery time?
Typically 3–7 working days depending on order quantity. We arrange shipment as soon as payment is received.
5. Do you offer OEM service?
Yes. We can print your logo and support various OEM/ODM customization ideas.
