Dom ProduktyWewnętrzny kabel światłowodowyGJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode
GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode
GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode
Skontaktuj się teraz

GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode

Minimalne zamówienie : 1000 m Szczegóły pakowania : Drewniany bęben
Czas dostawy : 2-4 dni Zasady płatności : Western Union, Moneygram, T/T, L/C
Możliwość Supply : 100 km na 2 dzień
Miejsce pochodzenia: Chiny Nazwa handlowa: Jiqian/Customize/ OEM
Orzecznictwo: ISO9001 ROHS CE-EMC FCC SDOC Numer modelu: Gjfjv

Szczegóły informacji
Typ włókna: OM3/G652D/G657A1/G655 OEM: Dostępny
Temperatura pracy: -20~70°C Centralny członek siły: Przędza aramid/przędza kevlar
Tworzywo:: PVC/LSZH Liczba błonnika: 12 24 48 96 rdzeń
Marka światłowodowa: YOFC/Fiberhome/Fujikura/Corning Aplikacja: Telekomunikacja/centrum danych/ftth
Podkreślić:

12 core indoor fiber optic cable

,

LSZH singlemode fiber cable

,

indoor distribution fiber optic cable

opis produktu

Indoor 12 Core Multimode Distribution Tight-Buffered Fiber Optic Cable (GJFJH / GJFJV)

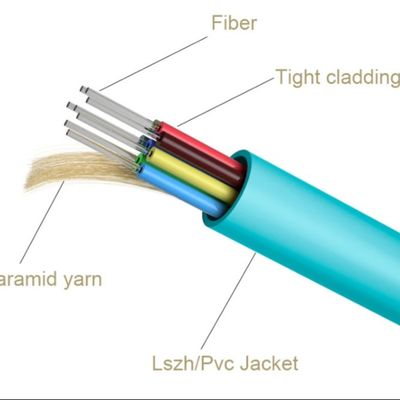

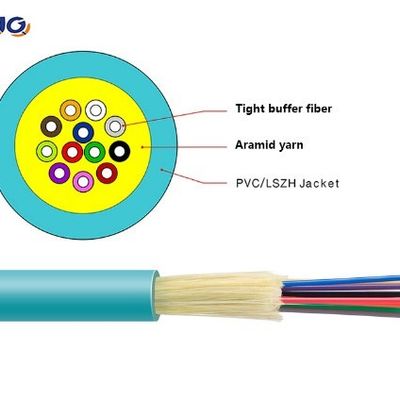

GJFJV indoor distribution cable uses 900μm flame-retardant tight-buffered fibers as the optical transmission medium. Each fiber is reinforced with a layer of aramid yarn for added tensile strength and then jacketed with either PVC or LSZH, depending on installation requirements.

The tight-buffer fibers are produced using high-precision buffering technology, available in 600μm or 900μm diameters. High-quality optical fibers, specialized production equipment, and strict process control ensure excellent mechanical stability and reliable transmission performance.



Features

  • Excellent mechanical and environmental performance

  • Flame-retardant design meets industry standards

  • Reliable mechanical strength for indoor/outdoor use

  • Soft, flexible, and easy to splice

  • High-capacity data transmission


Technical Data
No. of cable
8
12
24
36
48
Fiber Model
OM3
Tight lines
Material
PVC/LSZH
Thickness(±0.03)mm
0.32
Diameter(±0.06)mm
0.9
Center Strength Member
Material
FRP
Diameter(±0.1)mm
—
—
—
0.5
0.5
Strength Member
Material
Aramid Yarn
Inner Sheath
Material
PVC/LSZH
Diameter(±0.1)mm
—
—
—
0.8
0.8
Colour
Aqua
Outer Sheath
Material
PVC
Thickness(±0.1)mm
0.9
1.0
1.0
1.5
1.5
Colour
Aqua
Cable Diameter(±0.2)mm
5.8
6.2
8.5
15.1
15.1
Cable Wetght(±5)kg/km
31
41
60
238
235
Attenuation
850nm
dB/km
≤2.5
1300nm
≤0.7
Bandwidth
850nm
MHz.km
≥3500
1300nm
≥500
Allowable Tensile Strength
Short Term
N
660
660
660
1320
1320
Long Term
200
200
200
660
660
Allowable Crush Resistance
Short Term
N/100mm
1000
1000
1000
1500
1500
Long Term
200
200
200
300
300
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70





GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode 0

FAQ

Are you a real manufacturer?
Yes, we are a professional factory in Guangzhou, China. Welcome to visit us!



What is your minimum order quantity?
1 KM. Trial orders and new projects are supported.



Can I get a sample?
Yes, free samples are available. You only need to cover express shipping.



What payment methods do you accept?
L/C, T/T, Western Union, and PayPal are all accepted.



What is the delivery time?
Usually 3–7 working days, depending on order quantity.



Can you supply customized products and logo?
Yes, we provide OEM & ODM services. Please contact us with your requirements.
