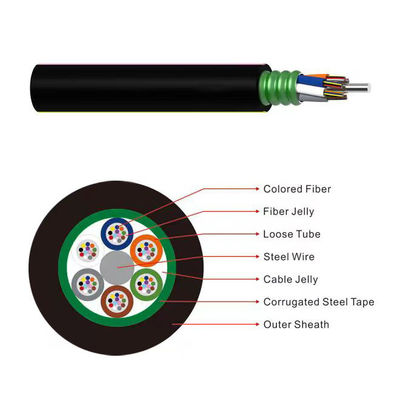

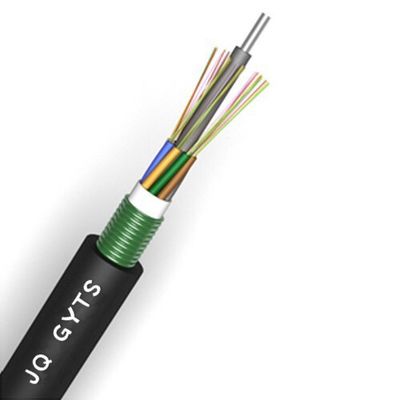

GYTS outdoor armored fiber optic cable uses single-mode or multimode fibers housed in high-modulus PBT loose tubes. The 250 μm fibers are protected with water-blocking gel, and the tubes are stranded around a central strength member to form a compact, round cable core.
A layer of PSP (polymer-coated steel tape) provides moisture and crush resistance, while the PE outer sheath ensures durability and UV protection. The cable structure delivers excellent mechanical strength, stability, and long-term reliability, making it suitable for duct, underground, and aerial installations.
Excellent mechanical and temperature performance
Hydrolysis-resistant loose tube with strong water-blocking capability
Tube filled with special gel for fiber protection
Compact stranded structure prevents tube shrinkage
UV-resistant PE outer jacket for long-term outdoor use
Central steel strength member enhances tensile performance
Full core filling ensures high moisture and water resistance
PSP steel tape armor provides crush resistance and shielding
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.8 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.7 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 11.3 | 140 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||
Application
Suitable for external application in duct and aerial
