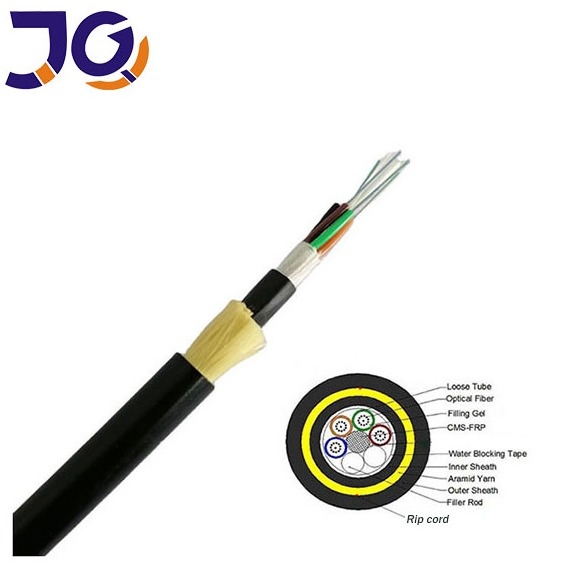

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

Minimalne zamówienie : 1 kilometr Szczegóły pakowania : Drewniany bęben
Czas dostawy : 2-5 dni Zasady płatności : L/C, D/A, D/P, T/T, Western Union, Moneygram
Możliwość Supply : 8000 kilometrów miesięcznie
Miejsce pochodzenia: Guangdong, Chiny Nazwa handlowa: JQ or OEM/Customize
Orzecznictwo: CE/ISO9001/RoHS/FCC Numer modelu: ADSS-4C/12FC/24C/48C/96C/144C

Szczegóły informacji

Numer modelu: ADSS -144B1 Typ: Zewnętrzny kabel światłowodowy
Miejsce pochodzenia: Guangdong, Chiny Liczba przewodników: ≥ 10
Typ światłowodowy: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 Długość: Zgodnie z wymaganiami
Kolor: Czarny/dostosowany Członek siły: Przędza aramidów
Kurtka:: Podwójna osłona PE Luźny materiał rurkowy: PBT
Zewnętrzna pochwa: PE/MDPE/HDPE lub jako żądanie Pakiet: Drewniany bęben/dostosowany
Aplikacja: antena, nad głową OEM: Dostępny
Przęsło: 50m-1000m Orzecznictwo: CE/ROHS/ISO9001
Atenuacja włókien: ≤0,4dB/km numer siły: FRP, Kevlar Aramid przędza
Uszczelka: Drum Carton Model kablowy: Podwójna kurtka/pojedyncza kurtka
Temperatura: -40 ℃ do +70 ℃ Materiał członkowski siły: Przędza FRP/aramidowa
Długość bębna: 5 km/bęben Liczba przewodników: 12core
Próbka: Bezpłatny Materiał pochłaniowy: PE lub dostosowane/HDPE/MDPE
Temperatura operacyjna: -20 ℃ ~+60 ℃ Osłona kablowa: Pe
Miernik rurki: PBT Członek siły: FRP, Kevlar Aramid przędza
Rdzeń: Rdzenie 48/96/144
Podkreślić:

ADSS fiber optic cable 96 core

,

outdoor aerial ADSS cable

,

non-armored double jacket fiber optic cable

opis produktu

ADSS Cable Structure and Design



ADSS cable adopts a loose tube stranded construction for reliable fiber protection. The optical fibers, 250μm, are housed in loose tubes made from high-modulus plastic, providing excellent mechanical strength and durability.

Each tube is filled with a water-blocking gel, preventing moisture ingress and protecting fibers from long-term water damage. The tubes and fillers are stranded around a central FRP (Fiber Reinforced Plastic) strength member, creating a compact and round cable core that is completely non-metallic, safe for use near power lines.

The cable core is filled with filling compound for additional water blocking, then covered with a thin PE (polyethylene) inner sheath to provide a smooth and stable structure. A stranded layer of aramid yarns is applied over the inner sheath, offering outstanding tensile strength and resistance to mechanical stress. Finally, the cable is completed with either a PE outer sheath for general outdoor use or an AT (anti-tracking) outer sheath for installation in high-voltage environments (≥110 kV).



Additional Benefits

  • Dielectric Design: No metallic elements, eliminating grounding requirements.

  • Long Service Life: Excellent UV resistance and weatherproof performance.

  • Lightweight and Easy to Install: Self-supporting design reduces installation cost and time.

  • Customizable: Available in various fiber counts (up to 288 cores) and sheath materials to suit different span lengths and project needs.

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 0

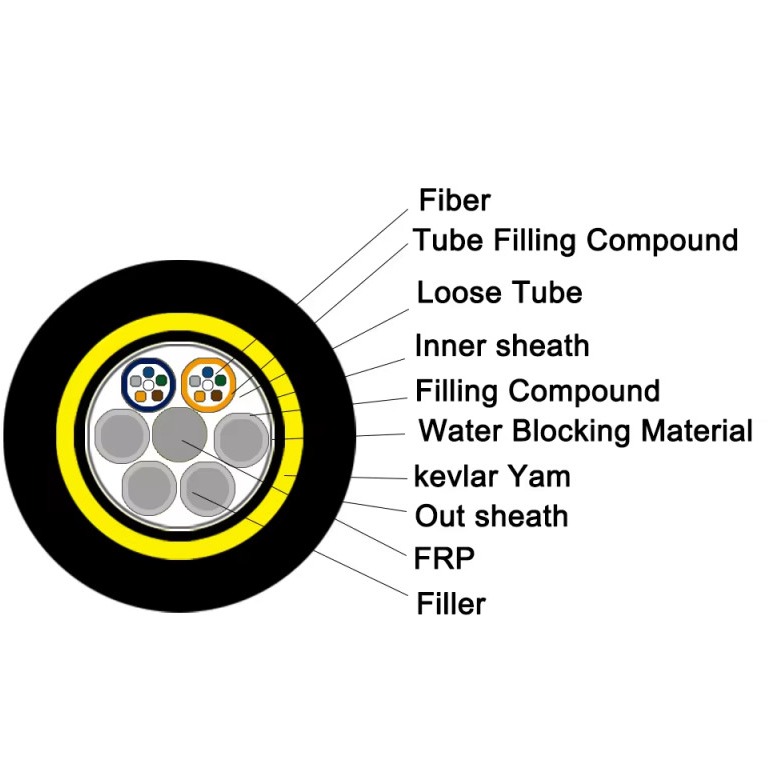

Cable Structure

  • PE Outer Jacket: Double-jacket design for enhanced durability and weather resistance

  • FRP Central Strength Member: Provides stable support and maintains cable shape

  • Rip Cord: Easy and quick sheath removal during installation

  • Fiber Jelly Filling: Water-blocking compound for moisture protection

  • Loose Tube: Holds fibers securely and allows free movement to minimize stress

  • Optical Fibers: High-quality single-mode or multi-mode fibers

  • Aramid Yarns: High tensile strength to withstand mechanical load

Key Characteristics

  • Low Attenuation and Dispersion: Stable transmission performance even under changing environments

  • Strong Mechanical Properties: Withstands tension, crush, and impact for reliable long-term use

  • Excellent Flexibility: Good bending radius, easy to route and install

  • Compact Design: Small outer diameter, lightweight, and space-saving construction

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 1

Application:

* The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
* For overhead power lines under 110kV, PE outer sheath is applied.
* For power lines equal to or over 110kV, AT outer sheath is applied.

Specification:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 2

Company:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 3All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 4

WHY CHOOSE US:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 5

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 6

Certification:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 7

FAQ



1. Who Are We
We are a professional fiber optic cable manufacturer based in Guangdong China since 2017 Our products are exported to Africa South America Western Europe the Middle East Southeast Asia and South Asia We have a team of 11 to 50 experienced staff



2. How Do We Ensure Quality

  • Pre production samples are provided for approval before mass production

  • Every order undergoes strict final inspection before shipment

3. What Can You Buy From Us
Fiber Optic Cable FTTH Drop Cable Indoor and Outdoor Communication Cables and related accessories



4. What Services Do We Offer

  • Delivery Terms: FOB EXW

  • Payment Options: T T L C D P D A Credit Card PayPal Western Union Cash

  • Currencies: USD CNY

  • Languages: English Chinese


We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
