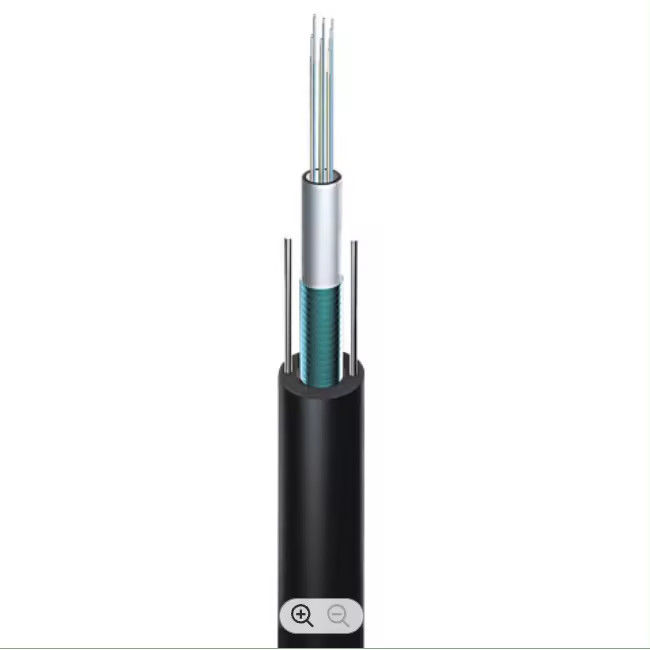

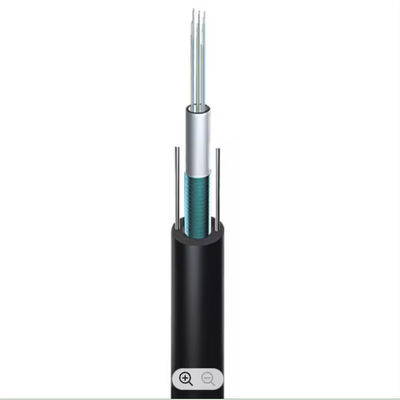

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable
GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable
GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable
Skontaktuj się teraz

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable

Minimalne zamówienie : 1 km Cena : 60-200USD/KM
Szczegóły pakowania : Drewniany bęben Czas dostawy : 3-5 dni zależy to od twojej ilości
Zasady płatności : L/C, D/A, T/T, Western Union, Moneygram Możliwość Supply : 60000 km/miesiąc
Miejsce pochodzenia: Guangdong, Chiny Nazwa handlowa: Jiqian/Customize/ OEM
Orzecznictwo: CE/ISO9001/RoHS/FCC Numer modelu: GYXTW-4/6/8/12B1

Szczegóły informacji
Liczba błonnika: 2-24core Członek siły: linka stalowa
Gwarancja: 25 lat MOQ: 1 km
OEM: Tak Opancerzony: Tak
fabryka: Tak Budowa: Osierocona luźna rurka
Nie rdzenia: 24 par Typ złącza: SC, LC, FC, ST lub dostosowane
Średnica zewnętrzna: 10,5 ~ 18,8+_0,5 mm Wzmocnij rdzeń: FRP
Kod światłowodowy: GYTA53 Temperatura: -20 stopni ~+70 stopni
Cable Outer Dame: 8,9-10,2 mm Osłona: HDPE/LSZH
Materiał zbroi: Falista taśma aluminiowa Zbroja: Podwójna taśma stalowa
Luźny materiał rurkowy: PBT lub galaretka Kurtka: PE, MDPE, LSZH, PVC
Tryb układania: Kanał/antena Przedmiot: GYTA
Materail z kurtką zewnętrzną: Pe Aplikacja: Komunikacja na zewnątrz
Odporność na UV: Dostępny Wodoodporny: Tak
Struktura: Luźna rurka Włókna aramidowe: import lub krajowy
Przęsło: 100m, 150m, 200 m Włókna na tubę: 12-144
Metody układania: Antenowy Kolor kabla: Czarny
Model: PDLC-PDLC Instalacja: samodzielnie wspierający powietrza, antena, kanał
Podkreślić:

single mode armored fiber optic cable

,

outdoor HDPE fiber optic cable

,

aerial duct optical cable

opis produktu

Product Description

OEM Outdoor Duct Aerial GYXTW Armored Fiber Optic Cable Single Mode Multi Mode G652D 2 4 6 8 12 24 Core

Product Description :
GYXTW optical cable, also called central loose tube or light armored fiber optic cable, is one of the most widely used outdoor cables. It is typically available in 2 to 12 cores based on the fiber color code.

  • GY stands for outdoor cable design

  • X indicates the central loose tube structure

  • T means the tube is filled with water-blocking gel

  • W represents the polyethylene outer sheath with steel wire reinforcement

Thanks to its armored structure and durable HDPE jacket, GYXTW cable is ideal for aerial, duct, and direct-buried installation. This makes it a reliable choice for FTTx, long-distance communication, and backbone network projects.

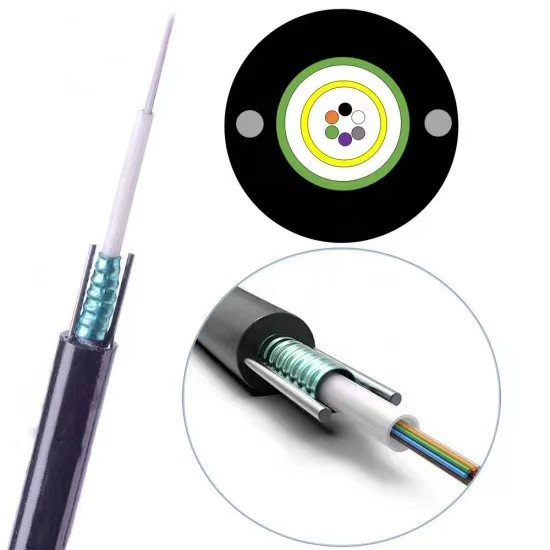

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable 0

Characteristics

  • Parallel steel wire strength members provide extra protection and stability.

  • Central loose tube with filling compound protects fibers and steel parts from moisture.

  • Corrugated tape armor delivers excellent crush resistance and durability.

  • Compact, lightweight construction for easy handling.

  • Simple and efficient installation.

Operating Temperature

  • From -40°C to +60°C, ensuring stable performance in harsh environments.

Applications

  • Designed for outdoor optical distribution networks.

  • Perfect for aerial, duct, and pipeline installation.

  • Suitable for long-haul transmission and LAN communication projects.

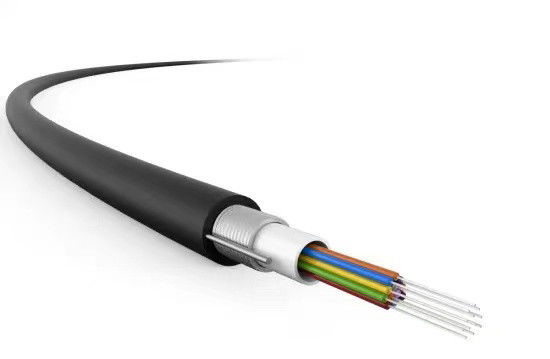

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable 1
PRODUCT SPECIFICATIONS
Item
Parameters
Fiber Count
12
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black
Related Products
GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable 2
GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable 3
Company Profile

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a technology-driven enterprise focused on the R&D, production, and sales of communication products, with full import and export rights. With over 8 years of industry experience, we are an ISO 9001:2015 certified manufacturer specializing in fiber optic cables and patch cords.



We provide OEM services and custom cable design to match specific project requirements. Our product range covers optical fiber cables and accessories widely used in telecom networks, and our products are exported to markets including Egypt, Pakistan, the Maldives, India, Brazil, and Chile.

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable 4
FAQ

  1. Q: Are you a factory or trading company?
    A: We are a direct factory manufacturer.



  2. Q: What is your MOQ?
    A: The minimum order is 1 km for fiber optic cables.



  3. Q: Which fiber brands do you use?
    A: We work with Corning, YOFC, Fiberhome, and other trusted brands.



  4. Q: Do you accept small orders?
    A: Yes, we support small orders and new projects to help customers start their business.



  5. Q: What is the lead time?
    A: Normally 5–7 days after order confirmation, depending on quantity.



  6. Q: Can you customize products and logos?
    A: Yes, OEM customization and logo printing are available.



  7. Q: What are your payment terms?
    A: 30% deposit by T/T, L/C, or Western Union, with balance before shipment.
