GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable
GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable
GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable
Skontaktuj się teraz

GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable

Minimalne zamówienie : 1 km Szczegóły pakowania : Drewniany bęben
Czas dostawy : 3-5 dni zależy to od twojej ilości Zasady płatności : L/C, D/A, D/P, T/T, Western Union, Moneygram
Możliwość Supply : 60000 km/miesiąc
Miejsce pochodzenia: Guangdong Chiny Nazwa handlowa: Jiqian/Customize/ OEM
Orzecznictwo: CE/ISO9001/RoHS/FCC Numer modelu: GYTS-48B1

Szczegóły informacji
Typ światłowodowy: G652D/G657A1/G657A2 Liczba błonnika: 2-288 rdzeni
Kurtka: PE, MDPE, LSZH, PVC, HDPE Kolor: Czarny
Długość: 2 km, 5 km lub dostosowana długość Gwarancja: 10 lat
Aplikacja: Kanał/ bezpośredni pochówek Długość fali: 1310/1550
Typ rurki: Luźna rurka Czas podnoszenia: Ponad 20 lat
Marka światłowodowa: YOFC/ Corning/ Fiberhome Wodoodporny: Tak
Średnica kurtki: 9,8-16,1 Dozwolone ciśnienie boczne: > 1000 (N/100 mm)
Członek siły: Dwa druty stalowe Długość kabla: 1000 m
Liczba przewodników: 2,4,8,24,48 Średnica rury: 2,2-2,6 mm
Przęsło: 100/200/300/400/500 m Rodzaj zbroi: Taśma stalowa/drut stalowy/taśma aluminiowa
Spam: 100/200/300/400/500 m Struktura połączenia: Okrągły drut
Fabryka OEM: Tak Typ kabla: Luźna rurka/opancerzona
Materiał z kurtki: PE/PVC/LSZH/HDPE/MDPE Opancerzony: Opancerzony taśmą stalową
Włókna aramidowe: import lub krajowy Standardowa długość: 2000 m/4000 m
Stal: 0,45 mm Metoda układania: Bezpośrednie pogrzeb/ układanie kanału
Luźna rurka: Wypełniony żelem Projektowanie kabla: Centralna luźna rurka
Odporność na UV: Tak Temp operacji: -20 ℃ ~ +70 ℃
Podkreślić:

armored underground fiber optic cable

,

direct burial outdoor fiber cable

,

288 core outdoor fiber optic

opis produktu

High-Performance GYTS Armored Underground Fiber Optic Cable

The GYTS armored fiber optic cable is designed for reliable underground installations, offering durability and stable performance in harsh environments. Available in 2, 4, 6, 8, 12, 24, 32, and 48 cores, it provides flexible options for various network requirements.

Key Features:

  • Armored Protection: Steel tape or wire armor ensures resistance to mechanical stress, rodent damage, and crushing.

  • Durable Outer Sheath: High-density polyethylene (HDPE) jacket protects against moisture, corrosion, and UV exposure.

  • Stable Data Transmission: Multiple cores support long-distance, high-speed communication with minimal signal loss.

  • Easy Installation: Designed for direct burial or conduit installation, simplifying deployment in outdoor environments.

  • Versatile Applications: Ideal for telecom networks, data centers, FTTH projects, and critical communication systems.

Specifications & Advantages:

  • Core options from 2 to 48 for different network needs

  • Excellent mechanical strength and environmental resistance

  • Low maintenance and long service life

This GYTS armored underground fiber cable is perfect for network operators, service providers, and enterprise installations requiring reliable, high-performance underground optical connectivity.


GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable 0

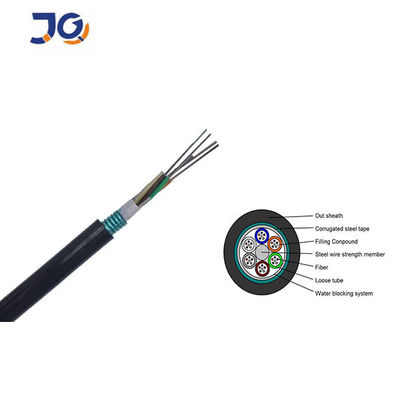

Structural Features
The cable features loose tubes or filler elements stranded around a central metal strength member. The core is protected by corrugated steel tape and an outer PE jacket. The tubes, made from temperature-resistant materials, house single-mode or multi-mode fibers with double coating for enhanced durability.

GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable 1
Product feature
The cable is built with loose tubes or fillers twisted around a central metal strength member. The core is protected with corrugated steel tape and a robust PE outer jacket. The tubes, constructed from heat-resistant materials, contain double-coated single-mode or multi-mode fibers.

GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable 2
Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS
98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS
122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS
146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D



GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable 3





Fiber Tube Color:
GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable 4

Packaging Details

  • Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.

  • Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable 5
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable 6
Exhibition Picture
GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable 7

Frequently Asked Questions (FAQ)

  1. What is a fiber optic cable?
    Fiber optic cables transmit data as light signals, offering higher speeds and greater bandwidth compared to traditional copper cables.

  2. What types of fiber optic cables do you offer?
    We provide armored, drop, and loose tube cables, suitable for underground installations, FTTH networks, and other applications.

  3. What core counts are available?
    Cables are available in 2, 4, 6, 8, 12, 24, 32, and 48 cores. Custom core counts can also be arranged.

  4. What is the difference between single-mode and multi-mode fiber?

  • Single-mode: Best for long-distance, high-speed transmission.

  • Multi-mode: Suitable for shorter distances with high data rates.

  1. How are the cables packaged?
    Cables are delivered on fumigated wooden drums, wrapped in protective polyethylene, and reinforced with wooden battens.

  2. How do I choose the right fiber optic cable?
    Consider the core count, fiber type (single-mode or multi-mode), and installation environment (indoor, outdoor, or underground). We can assist in selecting the best option.

  3. What is the lead time for orders?
    Standard orders typically ship within 7–10 business days. Custom orders may take longer.

  4. Do you provide installation services?
    We do not provide installation, but can recommend reliable installation partners.

  5. How can I request a quote?
    Email us at [jiqian@gzjqofc.com    ] with details including core count, cable type, and quantity to receive a quotation.
