Dom ProduktyRysunek 8 Kabel światłowodowy24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger
24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger
24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger
Skontaktuj się teraz

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger

Minimalne zamówienie : 1 kilometr Szczegóły pakowania : Drewniany bęben
Czas dostawy : 2-5 dni Zasady płatności : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply : 8000 kilometrów miesięcznie
Miejsce pochodzenia: Guangdong, Chiny Nazwa handlowa: JQ/OEM/Customize
Orzecznictwo: CE/ISO9001/RoHS/FCC Numer modelu: Gytc8s

Szczegóły informacji
Numer modelu: GYTC8S-24 48 rdzeń Typ włókna: G652D pojedynczy tryb lub jako żądanie
Kurtka: PE, MDPE, LSZH, PVC, HDPE Centralny członek siły: Drut stalowy
zbroja: Taśma stalowa Pakiet: Drewniany bęben/dostosowany
Aplikacja: Telekomunikacja/Sieć Nr włókna: 2-12 rdzeni światłowodowych
Podkreślić:

24 core GYTC8S aerial fiber cable

,

48 core steel messenger fiber optic

,

figure 8 self supporting fiber cable

opis produktu

GYTC8S Optical Cable Overview

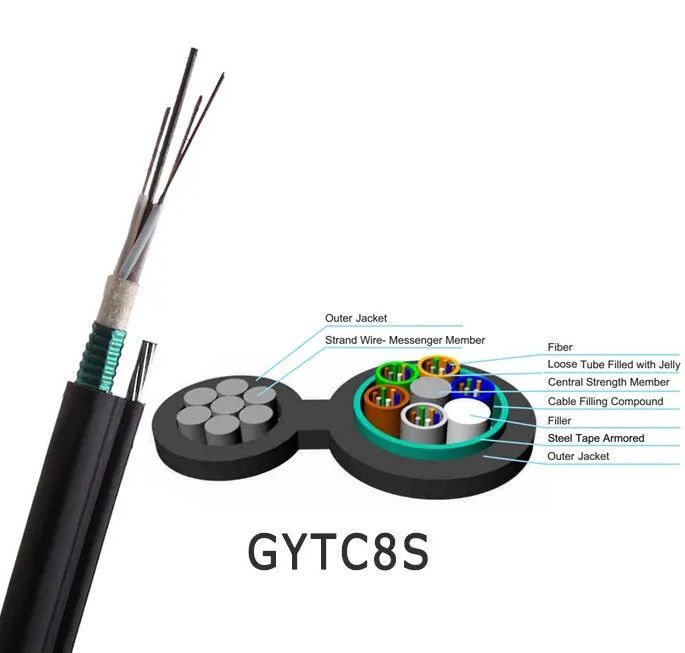

GYTC8S is a self-supporting aerial fiber optic cable with a stranded loose tube design, supporting 1–144 fibers. It features a steel messenger wire, corrugated steel tape armor, and a PE outer sheath for excellent tensile strength, crush resistance, and fiber protection. Ideal for long-distance and LAN communication.



Applications

  • Outdoor aerial installations

  • Long-distance communication lines

  • LAN and data transmission networks

  • Subscriber access and junction systems

  • CATV and computer networks

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D


Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20℃) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 0





24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 1

Certification:

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 2



FAQ



1. Who are we?
We are a fiber optic cable manufacturer in Guangdong, China, established in 2017, with 11–50 staff and global markets across Africa, South America, Europe, and Asia.



2. How do we ensure quality?
Pre-production samples and final inspections before shipment guarantee stable quality.



3. What products do we offer?
Fiber optic cables, FTTH drop cables, communication cables, indoor and outdoor fiber cables.



4. What services do we provide?
FOB/EXW delivery, multiple payment options (T/T, L/C, PayPal, etc.), in USD or CNY.



5. What is the MOQ?
1KM per order.



6. Can I get a sample?
Yes, free samples are available; buyers only pay for shipping.



7. Do you accept OEM/ODM?
Yes, our engineering team supports full customization.



8. What is the delivery time?
Usually 3–7 days after order confirmation, depending on quantity.
